JDM Honda Civic Type R EK9 B16B 1.6L VTEC Engine + 5-Speed LSD Transmission For Sale

Description

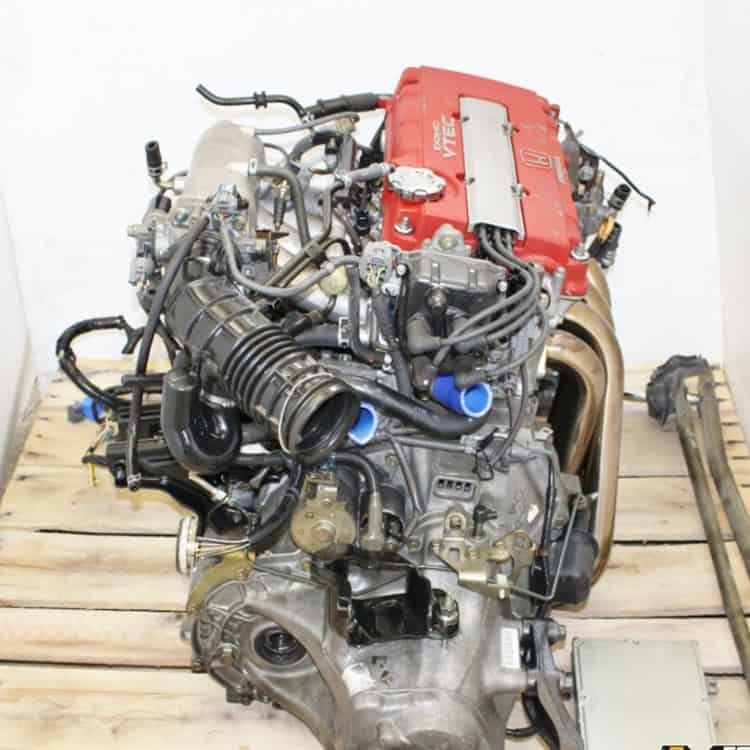

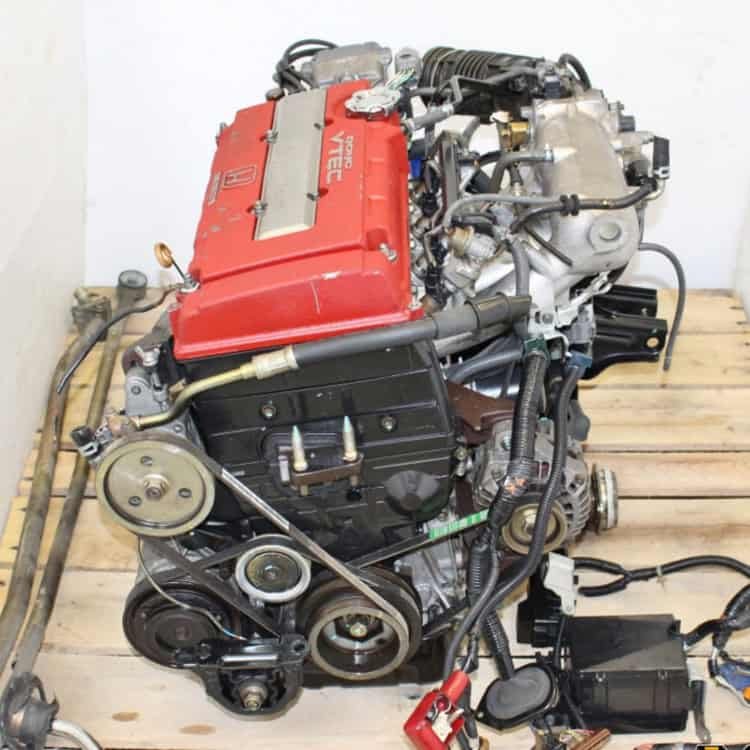

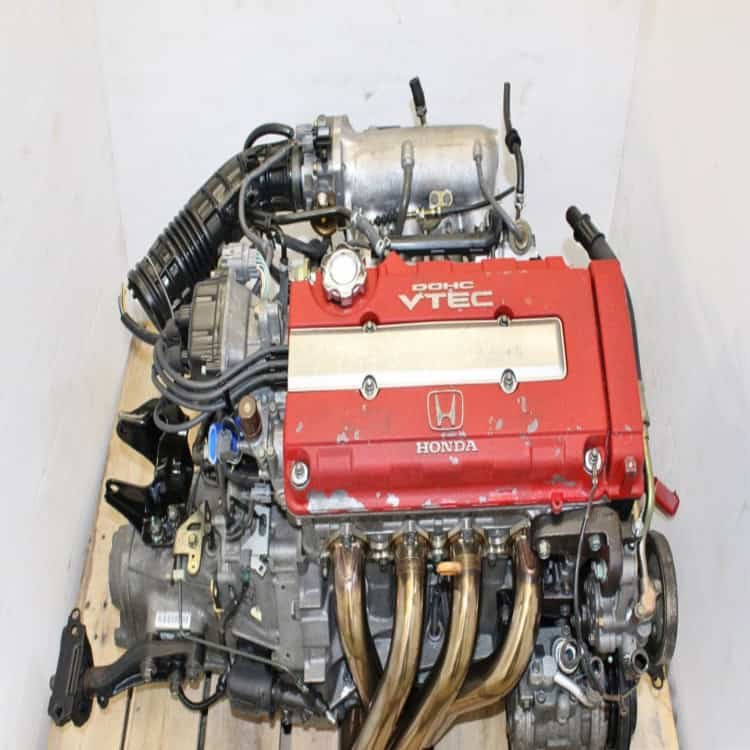

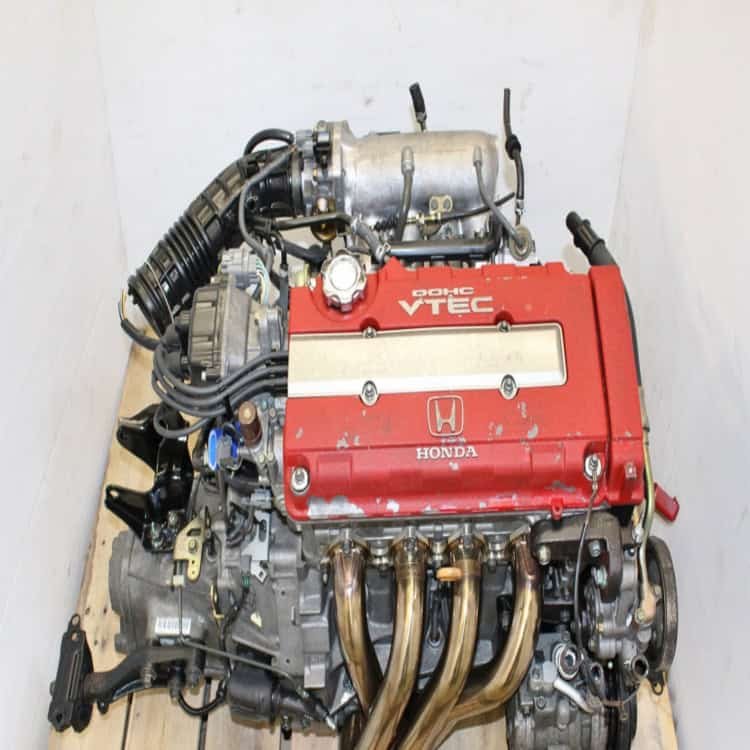

Genuine JDM Honda B16B Type R Engine & S4C 5-Speed Manual LSD Package

The B16B is one of Honda’s most iconic naturally aspirated performance engines. Designed specifically for the JDM Civic Type R, it combines a high-compression 1.6-liter four-cylinder with Honda’s DOHC VTEC technology and an exceptionally high-revving character.

This package is an excellent choice for a Honda Civic EK/EG engine swap, Type R restoration, track car, naturally aspirated performance build, or JDM project.

Engine Specifications

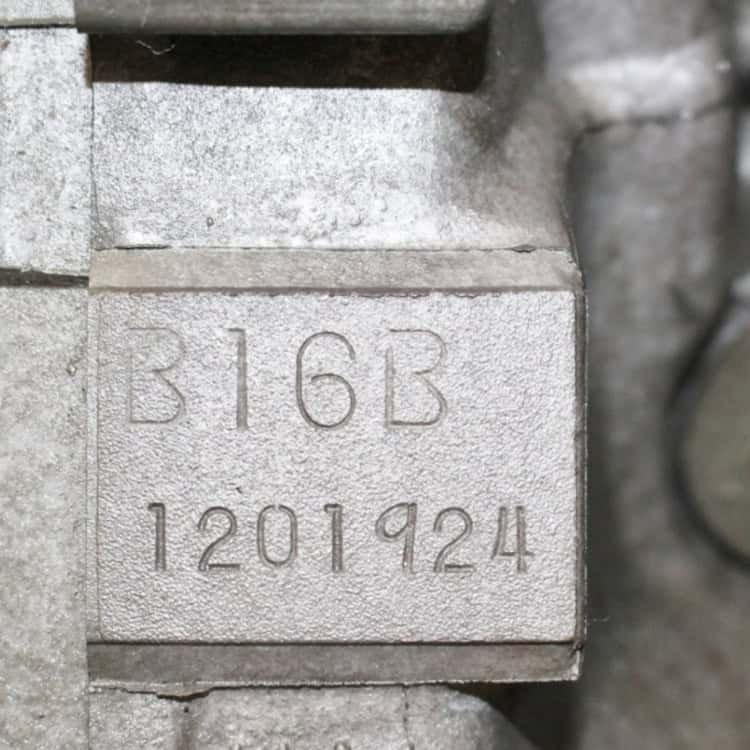

• Engine Code: B16B

• Engine Family: Honda B-Series

• Application: JDM Honda Civic Type R EK9

• Engine Type: Naturally Aspirated Inline-4

• Displacement: 1,595 cc / 1.6L

• Cylinder Head: DOHC VTEC, 16-valve

• Bore: 81.0 mm

• Stroke: 77.4 mm

• Compression Ratio: 10.8:1

• Fuel System: Honda PGM-FI electronic fuel injection

• Aspiration: Naturally aspirated

• Factory Power: 185 PS @ 8,200 rpm

• Factory Torque: 160 Nm @ 7,500 rpm

• VTEC: High-performance DOHC VTEC system

• ECU: PCT specification, depending on model year

• Model Years: 1997–2000 JDM Civic Type R EK9

Honda’s factory data confirms the B16B’s 1,595 cc displacement, 10.8:1 compression ratio, 185 PS output at 8,200 rpm and 16.3 kg-m of torque at 7,500 rpm.

5-Speed Manual Transmission

S4C 5-Speed Manual Transmission with Factory Helical LSD

• Genuine Honda Type R 5-speed manual transmission

• Transmission Code: S4C

• Close-ratio gearing

• Factory helical Limited-Slip Differential (LSD)

• Designed for high-RPM B16B performance

• Ideal for FWD performance and track applications

• Factory EK9 Type R specification

The original EK9 transmission is identified by the S4C prefix, and genuine EK9 gearboxes were equipped with an LSD.

Package Includes

Depending on the exact package being sold:

• ✅ B16B 1.6L DOHC VTEC engine

• ✅ S4C 5-speed manual transmission

• ✅ Factory helical LSD

• ✅ Intake manifold

• ✅ Throttle body

• ✅ Fuel-injection components

• ✅ Alternator

• ✅ Starter motor

• ✅ Distributor/ignition components, where applicable

• ✅ Engine accessories, where included

• ✅ ECU

• ✅ Engine wiring harness

• ✅ Axles/shafts



Ideal For

• Honda Civic EK9 restoration

• Honda Civic EK/EK4 engine swaps

• EG Civic performance builds

• Track and circuit cars

• Naturally aspirated VTEC builds

• Honda B-Series projects

• JDM restoration projects

• Performance and motorsport applications
